— Leveraging Schneider Electric’s Innovations for Industrial Efficiency

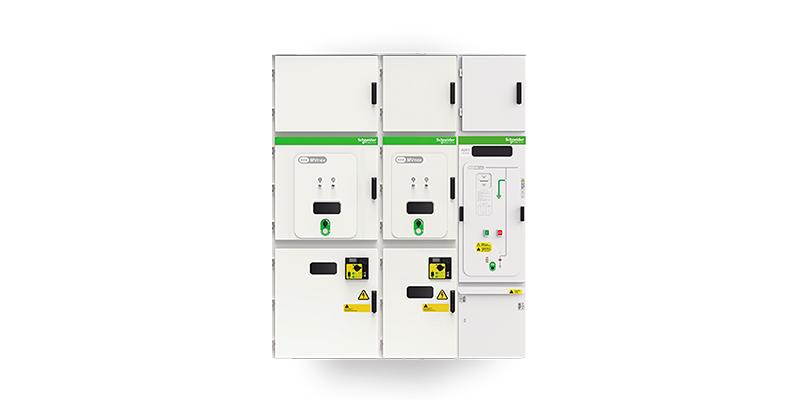

1. MVnex Switchgear: Redefining Medium Voltage Safety
Schneider Electric’s MVnex switchgear is engineered for high-performance medium voltage (MV) applications (up to 24kV). As an authorized partner, Fateng Electric integrates MVnex into custom solutions for industries requiring robust fault protection and scalability.Key Technical Specifications (Source: MVnex Datasheet)
| Parameter | MVnex | Typical Competitor |
| Rated Voltage | Up to 24kV | 15–17.5kV |
| Short-Circuit Current | 25kA (1s) | 20kA (1s) |
| Arc Resistance | IEC 62271-200 Certified | Partial Compliance |
| Modularity | 200+ Configurations | Fixed Design |
| Dimensions (W×H×D) | 600×2200×800mm | 800×2500×1000mm |
Case Study Data
Oil & Gas Facility Upgrade:
- Challenge: Replace aging 15kV switchgear with limited space.
- Solution: MVnex’s compact design reduced footprint by 35% while increasing fault tolerance to 25kA.
- Result: 20% lower maintenance costs via IoT-enabled condition monitoring.

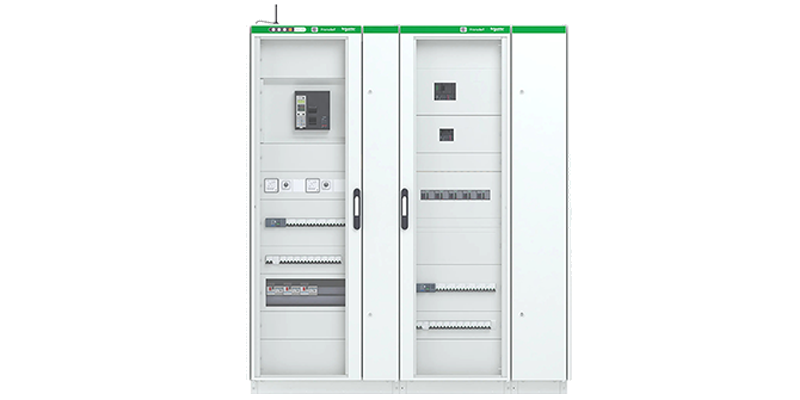

2. Prisma-E Low Voltage Panelboards: Precision Engineering for Critical Loads
The Prisma-E series (Schneider’s flagship LV panelboard) delivers unmatched reliability for commercial and industrial facilities.Technical Highlights (Source: Prisma-E Product Page)
| Feature | Prisma-E P Series | Standard Panelboards |
| Rated Current | Up to 6300A | ≤4000A |
| Short-Circuit Rating | 100kA (IEC 61439-2) | 65kA |
| Protection Class | IP55 (Optional) | IP31 |
| Installation Time | 30% Faster (Pre-wired) | Manual Assembly |
| Energy Efficiency | <0.8% Power Loss | 1.5–2% Loss |
Real-World Application
Data Center in Germany:- Requirement: High-density LV distribution with 99.99% uptime.
- Implementation: Prisma-E P4 panels with 100kA SCCR and IP55 sealing.
- Outcome: Zero downtime incidents over 3 years; 15% energy savings.
3. Integration Synergy: MVnex + Prisma-E
Combining MVnex and Prisma-E creates a seamless hybrid power distribution system:
Technical Synergy Metrics
- Voltage Transition: Smooth MV-to-LV conversion with <1% harmonic distortion.
- Footprint Optimization: Integrated designs reduce total space by 25–40% vs. traditional setups.
- Smart Monitoring: Unified EcoStruxure platform for real-time MV/LV analytics.
Certification Alignment
- MVnex: IEC 62271-200, ANSI C37.20.1
- Prisma-E: IEC 61439-1/2, UL67
Why Partner with Fateng Electric?
As a Schneider Electric-authorized provider, we deliver:
- Certified Expertise: Schneider-certified engineers for system design.
- Local Compliance: Solutions tailored to NEC (US), IEC (EU), and AS/NZS (APAC).
- Lifecycle Support: Extended warranty with predictive maintenance plans.
Conclusion
Schneider Electric’s MVnex and Prisma-E technologies set benchmarks in safety and efficiency. By leveraging these systems through Fateng Electric, clients gain access to data-driven, future-proof infrastructure.
