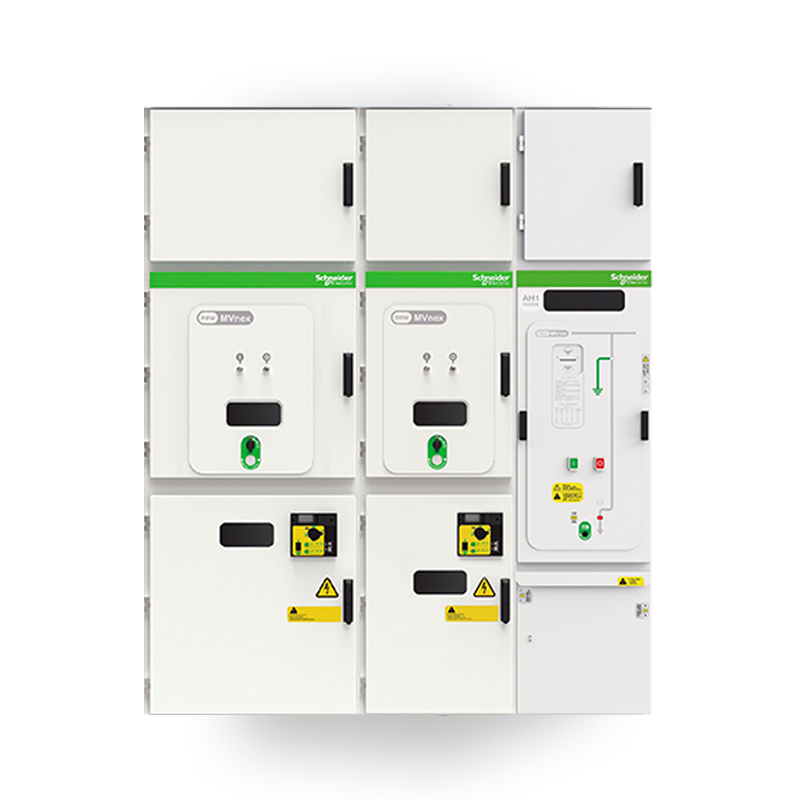

MVnex - Premium MV Power Distribution Solutions
Description:
As a certified Schneider Partner OEM Switchgear Factory, FATENG Electric delivers MVnex switchgear fully compliant with IEC 61439 standards. Designed for critical power infrastructure, our Schneider-authorized series features:
- Advanced arc-resistant protection (Up to 40kA)
- Seamless integration with PowerLogic™ monitoring systems
- UL891 & IEC 62271-200 certifications for global deployments
- Trusted by industrial plants and data centers worldwide as a Customized Power Distribution Solutions Provider.
Presentation
Documents
Structural Characteristics
Rated voltage: 12kV/24kV
#Rated insulation level:
>Power frequency withstand voltage (50Hz, 1min): 42kV/65kV
>Lightning impulse withstand voltage (1.2/50) μ s) 75kV/125kV
>Rated short-term withstand current (4s): 25-31.5-40kA
>Rated peak withstand current: 63-80-100kA
>Internal arc level: 31.5kA/1s; 40kA/1s
>Grounding switch: 31.5kA/4s; 40kA/4s
#Protection level:
>Shell: IP4X
>Chamber: IP2X # Operating environment:
>Operating temperature: -15~40 ℃
>Altitude: ≤ 1000m
>Humidity: 24 hours 95% 1 month 90%
• Buildings and residences
• Data centers
• Electricity power and wind power
• Petroleum and petrochemical
• Infrastructure
Benefits
People safety
Thermal monitoring/Internal arc containment and arc flash protection
Power availability
Up to IP 54 protection degree for dusty and damp environments to ensure your continuous operation
Sustainability
Green Premium product — non-hazardous material, designed for optimized recycling, and reduced carbon footprint and energy consumption.
Standards Compliant
All cubicles are tested according to the latest version of IEC publications:
• IEC 60298 and 60694 on MV switchgears and controllers
• IEC 60529 defining enclosure protection class
Chinese national standard GB3906 and power industry standard DL404
• IEC 60694 and GB11022: general technical conditions for HV switchgears
• IEC 60298 and GB3906: AC metal-enclosed switchgears
• IEC 60056 and GB1984: HV AC circuit breakers
• IEC 60470 and GB/T14808: AC HV contactors and contactor-based motor starters
All cubicles are tested according to the latest version of IEC publications:
• IEC 60298 and 60694 on MV switchgears and controllers
• IEC 60529 defining enclosure protection class
Chinese national standard GB3906 and power industry standard DL404
• IEC 60694 and GB11022: general technical conditions for HV switchgears
• IEC 60298 and GB3906: AC metal-enclosed switchgears
• IEC 60056 and GB1984: HV AC circuit breakers
• IEC 60470 and GB/T14808: AC HV contactors and contactor-based motor starters
