Key Features & Benefits

• Wide Voltage Range: 2.4kV / 5kV / 15kV / 27kV / 38kV

• Ampacity: 600A to 3000A continuous current ratings

• Switch Type: Fusible load interrupters or custom main switching devices

• Accessibility:

  • Rear access for load and line connections

  • Optional front access configurations available

• Compartmentalized Design:

  • Internal barriers separate bus, cable, and switching zones

  • Enhanced arc containment and fault isolation

• Metering Capabilities:

  • Utility-grade metering integration for U.S. and international standards

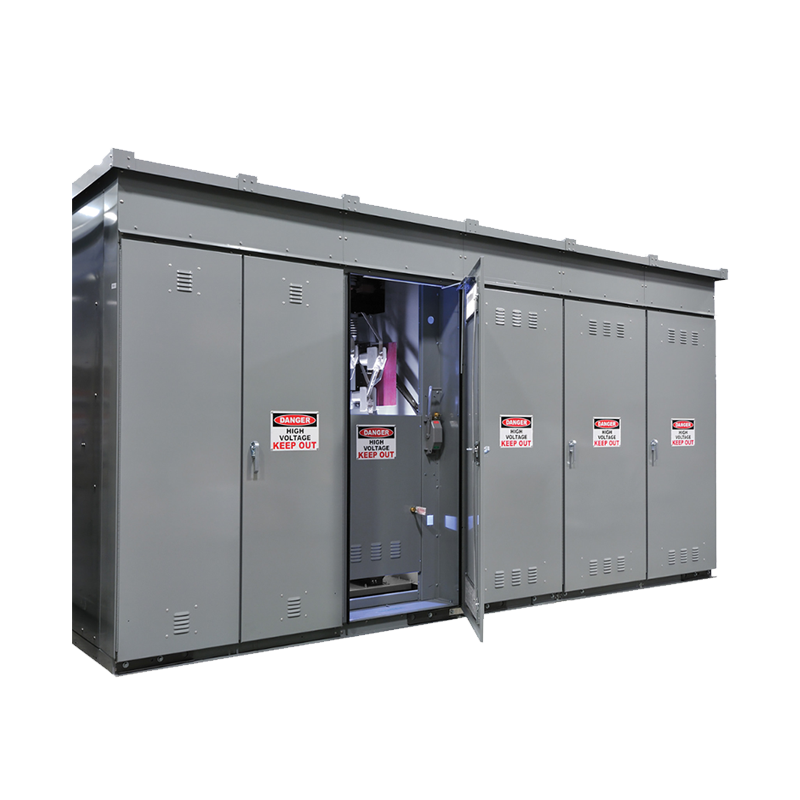

• Indoor & Outdoor Enclosures:

  • Available in NEMA 1 (indoor) and NEMA 3R (outdoor) ratings

  • Optional walk-in or non-walk-in styles

• Custom Engineering:

  • Designed and sized to meet dimensional and electrical layout needs

• Seismic Certified:

  • Qualified to IEEE 344 and ICC-ES-AC156 response spectrum

• Durable Coatings:

• State-of-the-art powder coating process

• Exceeds 1500-hour salt spray test standard (up to 3000 hours)

Technical Specifications

Application Scenarios

• Primary Substations & Unit Substations
  Used as incoming switchgear for medium-voltage substations and transformers.

• Utility Grid Interface
  Integrated with metering and protection devices for utility acceptance.

• Industrial & Infrastructure Projects
  Ideal for manufacturing plants, data centers, airports, railways, and hospitals.

• Outdoor Power Distribution
  Rugged NEMA 3R enclosures withstand harsh environments including moisture, dust, and temperature variations.

Why Choose FATENG Metal-Enclosed Switchgear?
