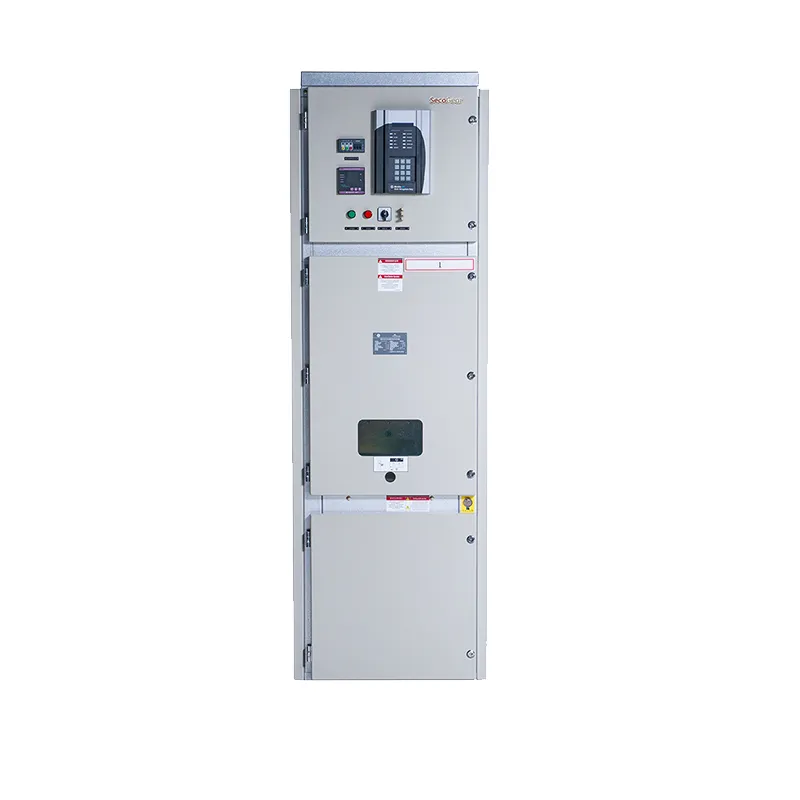

GE SecoGear P/V-24 Air-Insulated Switchgear
GE-Heritage SecoGear™ P/V Series
*3.6kV-24kV Air-Insulated Metal-Clad Switchgear*
ANSI/IEEE & UL Compliant | SF6-Free Eco Design | 40kA Arc-Resistant Protection
"GE metal-clad switchgear", "ANSI compliant switchgear", "UL listed MV switchgear", "SF6-free vacuum circuit breaker", "40kA arc resistant switchgear", "SecoGear P/V 24kV", "GE SecoVac VB2 Plus", "air-insulated switchgear", "data center power distribution", "industrial substation equipment"
Technical Specifications | GE SecoGear™ P/V
| Parameter | P/V-12 | P/V-24 |
|---|---|---|
| Rated Voltage | 3.6/7.2/12kV | 24kV |
| Main Bus Current | 630A-5000A* | 630A-3150A** |
| Short-Circuit Withstand | 50kA/0.5s (peak 135kA) | 31.5kA/1s (peak 80kA) |
| Internal Arc Rating | 40kA/1s (AFLR class) | 31.5kA/1s (AFLR class) |
| Insulation Medium | Air + Epoxy Resin | Air + Epoxy Resin |
| Standards | ANSI C37, IEEE, UL | ANSI C37, IEEE, UL |
| Protection Class | IP4X (Enclosure) | IP4X (Enclosure) |
| * Forced air cooling >4000A | ** Forced air cooling ≥3150A |
For a custom quote on GE SecoGear P/V-24 Air-Insulated Switchgear

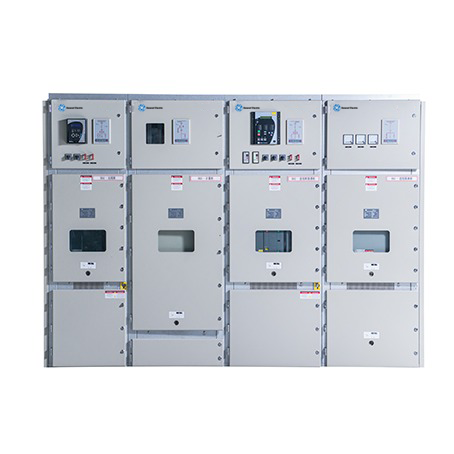

REQUEST A QUOTEGE SecoGear™ P/V Series – Powering Critical Infrastructure
American Standard Compliance: Certified to ANSSI/IEEE and UL standards for short-circuit withstand (50kA/0.5s), internal arc protection (AFLR 40kA/1s), and seismic resilience (AG5 for ≤12kV).
Eco-Conscious Design: Zero SF6 – Uses air/epoxy insulation, eliminating greenhouse gas risks and disposal costs. Fully recyclable materials align with ISO 14001.
High-Reliability Components: Integrated SecoVac™ VB2 Plus vacuum breaker (30,000 mechanical operations), Galaxy protection relays, and motorized interlocks.
Why Choose GE-Heritage Switchgear?
Safety First: Full interlock system (e.g., shutters auto-close when breaker withdraws), visible window for contact status, and voltage detection per IEC 61243-5.Total Cost Savings: 20-year lifespan, minimal maintenance (SecoVac breaker needs no servicing), and reduced installation time via top/bottom cable entry.
Global Support: Engineered for worldwide deployment (3,000m altitude operation for 12kV).
Upgrade Path: Compatible with GE legacy systems and retrofit projects.
Applications & GE-Integrated Solutions
Critical Facilities: Data centers, hospitals, airports (e.g., Shanghai Pudong Airport), and Olympic venues.
Industrial Power: Oil & gas, mining, cement plants, and marine vessels with high-temperature tolerance (up to 40°C+).
Smart Grid Ready: Galaxy series relays enable remote control, condition monitoring, and seamless integration with SCADA.
Flexible Configurations: 32+ primary schemes (cable/overhead feed, PT metering, tie-breaker) with 650mm-1000mm cabinet widths.
