Up to 1200A | 200kA Interrupt Rating | Fully Customizable | UL & CSA Listed

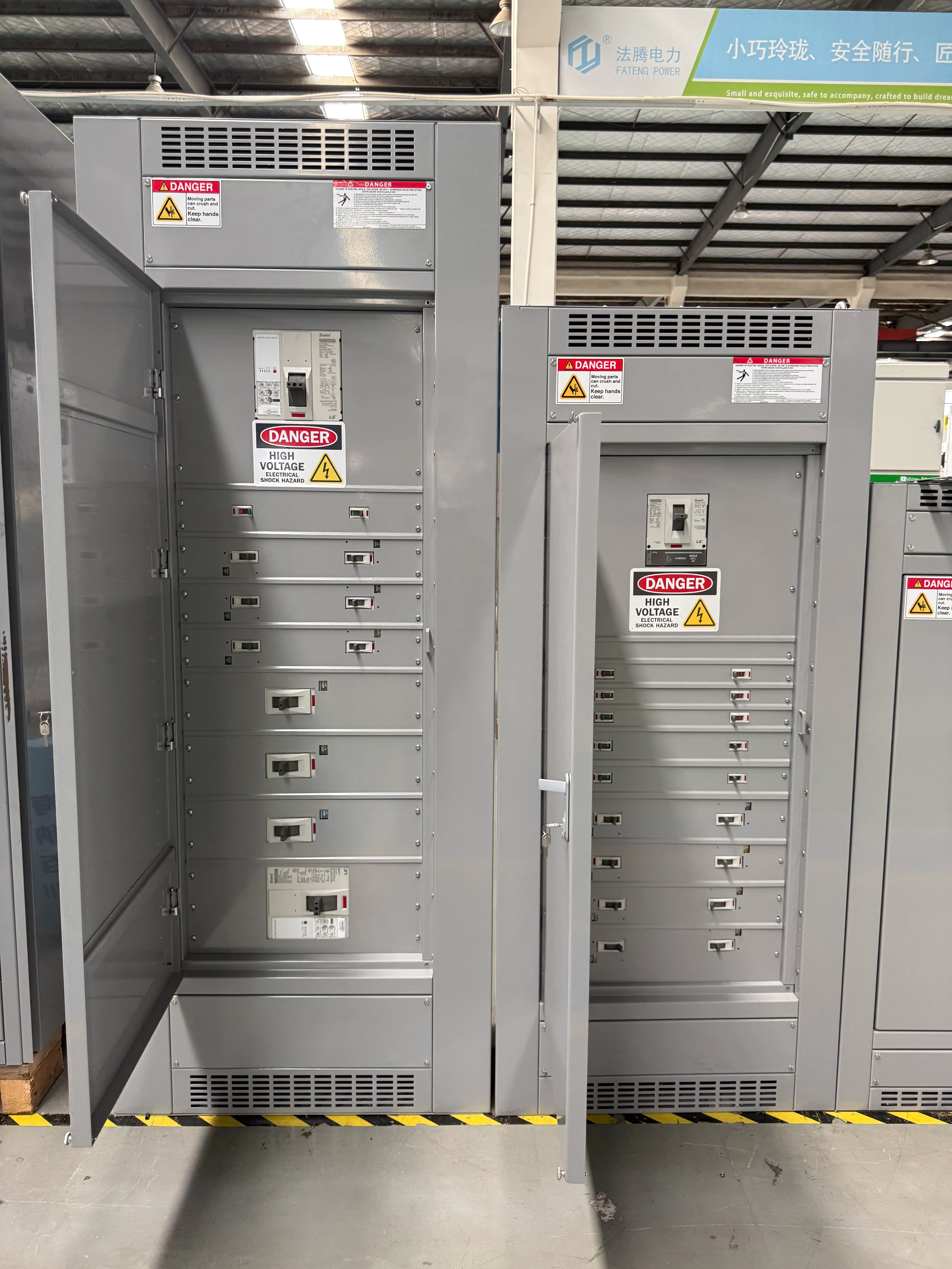

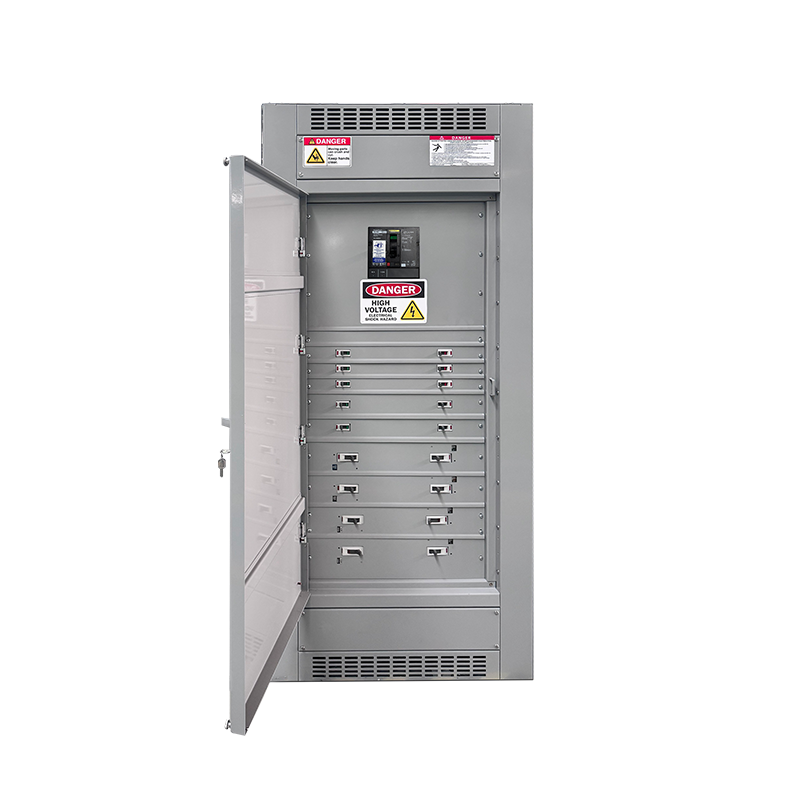

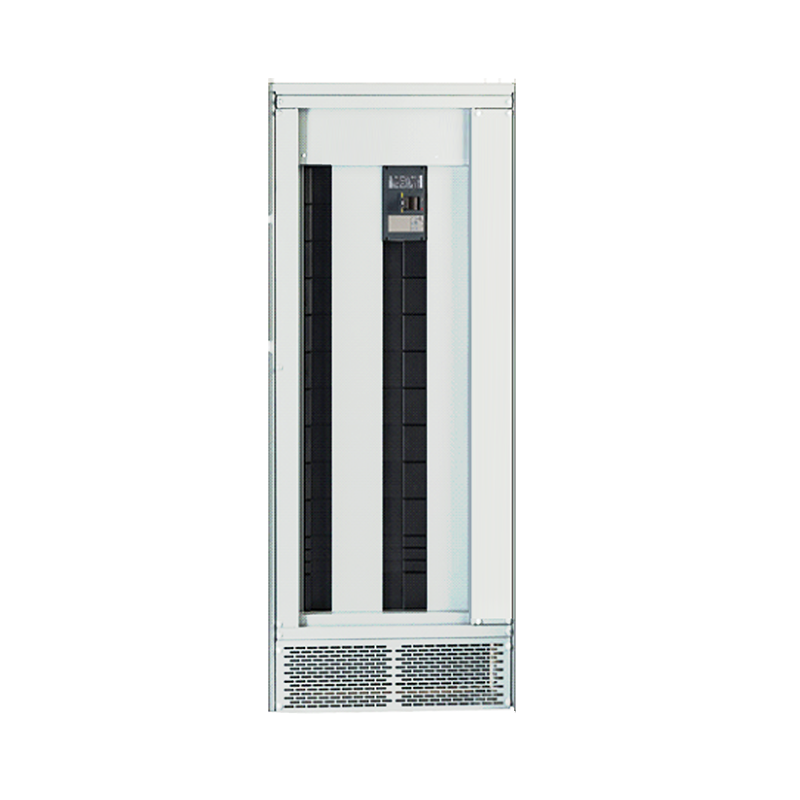

UL67 Low Voltage Panelboards

UL67 Low Voltage Panelboards


Overview

FATENG UL 67 Panelboards are precision-engineered solutions for low-voltage electrical distribution in residential, commercial, and light industrial facilities. Available in lighting, receptacle, and distribution configurations, our panelboards offer flexible circuit arrangements, superior enclosure designs, and reliable protection—with full compliance to UL 67, UL 50, CSA, and NEMA PB-1 standards.

Whether your project requires standard single-section panels or multi-section assemblies with up to 84 circuits, FATENG panelboards are built for performance, safety, and modular expandability.


Key Features & Benefits

  • Voltage Ratings:

    • Up to 480VAC / 250VDC (standard)

    • Up to 600VAC (for heavy-duty configurations)

  • Ampacity Range:

    • From 100A up to 1200A

    • Up to 200A per row; 84-circuit designs supported

  • Interrupt Ratings:

    • Up to 65kA at 480V, 100kA at 480V, and 200kA at 240V

  • Breaker Options:

    • Main breaker / main lugs / sub-fed breakers (fixed or vertical mount)

    • Compatible with UL-listed molded case circuit breakers from leading brands

  • Busbar Options:

    • Silver-plated copper, tin-plated copper, or aluminum

    • 200% rated neutrals for non-linear loads

  • Surge Protection & Automation:

    • Optional integrated SPD (Surge Protective Device)

    • Available with PLC-based remote monitoring and metering

Design Flexibility

  • Single-Phase and Three-Phase Options

  • 84 Circuit Configurations

  • Bolt-On or Plug-In Interiors

  • Fully Rated or Series Rated Systems

  • Sequence Phase Connection: Enables 1-, 2-, or 3-pole arrangements for balanced loading

  • Trim Types:

    • Standard flush or surface trims

    • Optional “door-in-door” trims for added convenience

  • Multi-Section Capability:

    • Panels can be bolted together horizontally or vertically

    • Bush openings allow interconnect flexibility

  • Material & Finish Options:

    • ANSI 61 Light Gray powder coat (standard), other colors available

    • Optional stainless steel or aluminum enclosures

    • Indoor and outdoor-rated versions with salt spray resistance up to 3000 hours

  • Title 24 Compliance (Optional):

    • Special configurations for California Title 24 load disaggregation




For a custom quote on UL67 Low Voltage Panelboards

REQUEST A QUOTE

Reliability & Compliance

  • Standards Compliance: UL 67, UL 50, CSA, NEMA PB-1, and Federal Specification WP-115a

  • Seismic Qualification: Tested to IEEE 344 and ICC-ES-AC156 for structural integrity in high-risk zones

  • Indoor/Outdoor Use: Enclosures designed for harsh environments and high humidity

  • Locking & Access:

    • Positive slide-catch locking mechanism

    • Right- or left-hand door installation supported


Application Scenarios

FATENG UL67 Panelboards are ideal for:

  • Commercial Buildings
    Offices, retail centers, malls, and public facilities

  • Light Industrial Environments
    Workshops, warehouses, logistics hubs

  • Residential & Multi-Family Projects
    Apartments, high-rises, villa communities

  • Critical Infrastructure
    Hospitals, labs, transportation hubs—where clean power and reliability matter



Technical Summary

Parameter Value
Voltage Up to 480VAC / 250VDC (standard); 600VAC (optional)
Ampacity 100A – 1200A
Interrupt Rating Up to 200kA @ 240V
Circuit Count Up to 84 circuits per panel
Breaker Mounting Main / Sub-fed, vertically mounted
Busbar Material Silver/Tin-plated Copper or Aluminum
Enclosure NEMA 1 / 3R, Powder-coated / SS / Aluminum
Seismic Compliance IEEE 344, ICC-ES-AC156
Certifications UL 67, UL 50, CSA, NEMA PB-1
