Reliable Medium-Voltage Power Control for OEM and Retrofit Projects

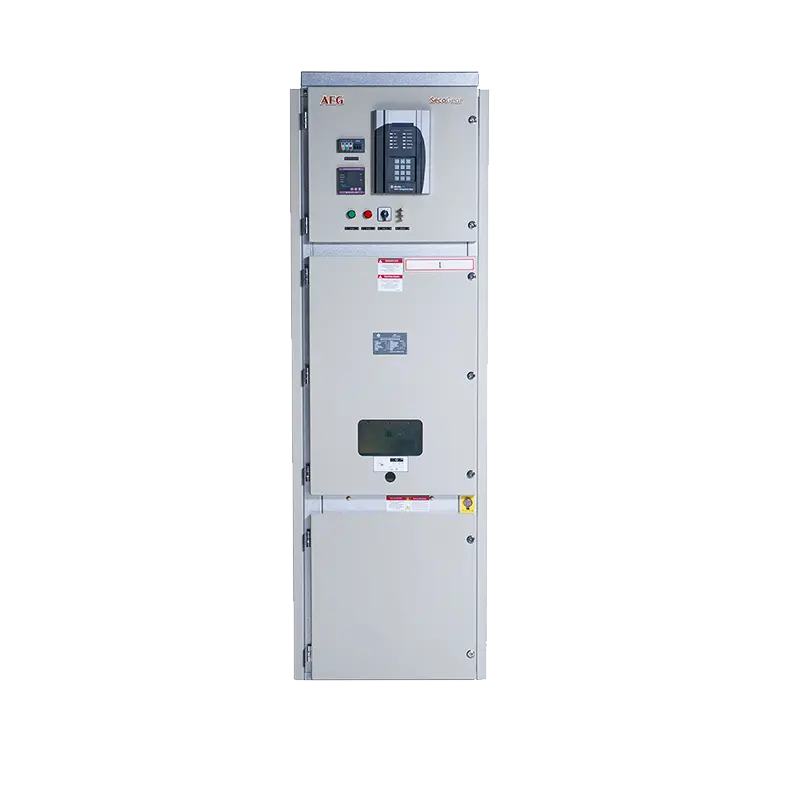

SecoGear P/V II-7.2~12 (J.R) Metal-Clad Switchgear

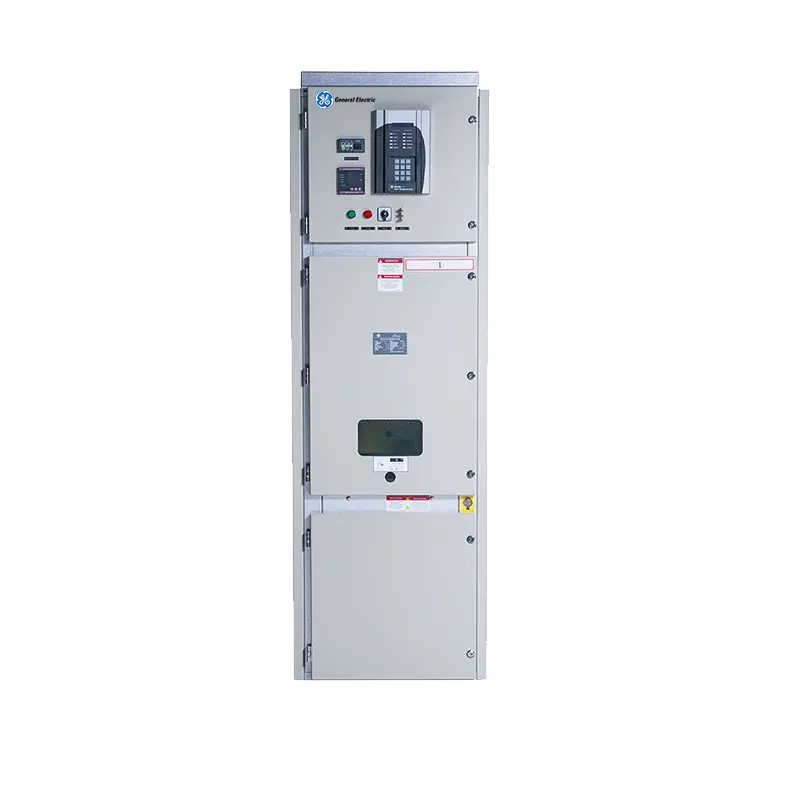

SecoGear P/V II-7.2~12 (J.R) Metal-Clad Switchgear

Quick Overview

  • Voltage Rating: 7.2kV – 12kV

  • Application: Indoor metal-clad switchgear for OEM panel integration and legacy system retrofits

  • Standards: IEEE C37, ANSI C37.20.2, IEC 62271-200

  • Breaker Options: Compatible with SecoVac embedded vacuum circuit breakers and GE OEM retrofit modules

SecoGear P/V II-12, 12kV metal clad cabinet, OEM switchgear panel, retrofit switchgear solution, GE VCB cabinet

Key Features

  • OEM & Retrofit Friendly – Tailored to accommodate GE SecoVac and SecoBloc breaker units, enabling fast and safe replacements or integrations.

  • Flexible Compartment Layout – Modular panel structure, suitable for busbar extension and customized feeder sections.

  • Arc-Fault Protection – Fully arc-proof compartments with pressure-relief flaps and internal arc classification up to AFLR.

  • Enhanced Safety Interlocks – Logical mechanical and electrical interlocks for operator safety and maintenance security.

  • Optimized for Compact Spaces – Slim front-accessible design ideal for substations with space constraints.

Technical Specifications

Parameter Specification
Rated Voltage 7.2 kV / 12 kV
Rated Current 630 A / 1250 A / 2000 A
Short-Time Withstand 25 kA / 31.5 kA, 3s
Frequency 50Hz / 60Hz
Protection Level IP4X external, IP2X internal
Installation Type Indoor, floor-mounted
Standards IEEE C37.20.2, ANSI C37.04/.06, IEC 62271-200
Breaker Compatibility SecoVac embedded-pole, OEM retrofit VCBs

For a custom quote on SecoGear P/V II-7.2~12 (J.R) Metal-Clad Switchgear

REQUEST A QUOTE

 Typical Applications

  • Medium-voltage distribution for:

    • Industrial manufacturing plants

    • Utility substations

    • Renewable energy hubs

    • Retrofit projects for legacy GE gear

    • OEM panel assemblies with GE or SecoVac breakers

FAQ

Q: Can this switchgear support GE breaker replacements like VB1 or AMH?
A: Yes, the P/V II-12 design supports OEM integration of SecoVac and compatible retrofit vacuum circuit breakers.

Q: Is this suitable for utility substations with limited space?
A: Absolutely. Its modular, front-access design makes it ideal for compact installations and retrofit work.
