Selecting the appropriate low-voltage (LV) switchgear is critical for ensuring electrical safety, reliability, and compliance in any construction or engineering project. Particularly in the Americas, UL891 and UL67 standards play an essential role in guiding engineers and contractors in choosing the right LV switchgear solutions. This article demystifies these two essential standards, highlighting their key differences, applications, and practical guidelines for making informed decisions, supported by specific product details from FATENG Electric’s UL891 and UL67 series.

What are UL891 and UL67 Standards?

Underwriters Laboratories (UL) provides certifications and standards ensuring the safety and reliability of electrical equipment. UL891 and UL67 specifically address low voltage switchboards and panelboards, respectively. Understanding their scopes and requirements is foundational for selecting the appropriate gear for your projects.

• UL891 – Low Voltage Switchboards:

  • Applies to dead-front switchboards rated up to 600 volts.

  • Suitable for high-current distribution and protection in commercial and industrial settings.

  • Typically includes circuit breakers and fusible switches arranged in modular assemblies.

• UL67 – Panelboards:

  • Applies to panelboards rated up to 600 volts and typically limited to 1200 amps or less.

  • Commonly used in residential, commercial, and smaller industrial applications.

  • Primarily includes miniature circuit breakers and branch circuit protection.

Key Differences Between UL891 and UL67

1. Application and Load Requirements

• UL891: Designed for heavy-duty applications requiring high current ratings, often used in large commercial or industrial projects.

• UL67: Typically utilized in smaller-scale installations or sub-distribution points within larger systems.

2. Construction and Configuration

• UL891: Robust construction, modular configurations allowing expansions and customizations.

• UL67: Compact, simple design, often wall-mounted for quick access and maintenance.

3. Safety and Performance Criteria

Both standards include rigorous testing, such as short-circuit current ratings (SCCR), thermal endurance, and structural integrity. UL891 switchboards typically undergo more extensive testing due to their larger capacities.

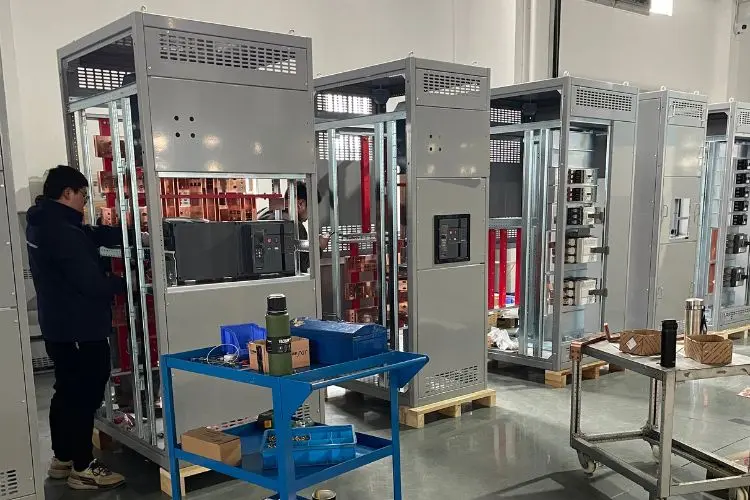

FATENG Electric UL891 Switchboards

FATENG Electric‘s UL891 switchboards feature:

• Voltage rating: Up to 600V

• Current rating: Up to 6000A

• SCCR: Up to 100kA

• Configurations: Modular and customizable layouts for specific project needs

Ideal for data centers, hospitals, industrial plants, and large commercial buildings. FATENG’s switchboards ensure minimal downtime, critical in applications where outages can cost thousands of dollars per minute.

FATENG Electric UL67 Panelboards

FATENG Electric‘s UL67 panelboards feature:

• Voltage rating: Up to 600V

• Current rating: Up to 1200A

• SCCR: Up to 65kA

• Compact design for ease of installation and maintenance

Perfect for residential complexes, commercial offices, retail spaces, and educational institutions requiring simple yet reliable power distribution.

Practical Considerations for Selection

1. Project Scale and Power Demand

Evaluate your project‘s scale clearly. Larger installations favor UL891, while UL67 is suitable for moderate power needs.

2. Flexibility and Future Expansion

If future expansions are likely, choose FATENG’s UL891 for its modular design and scalability.

3. Maintenance Accessibility

For easy maintenance, FATENG’s UL67 provides simple design and quick accessibility.

4. Budget Constraints

UL67 is more cost-effective for smaller applications, whereas UL891 represents a larger investment with greater capabilities.

Understanding Short-Circuit Ratings (SCCR)

SCCR is vital for safety and compliance. FATENG Electric’s UL891 and UL67 products offer high SCCR ratings, capable of safely interrupting fault currents to protect equipment and personnel.

Data-Driven Decision Making

• 75% of electrical incidents result from incorrect equipment selection.

• 92% of contractors emphasize UL standards compliance for reducing failures and enhancing safety.

Choosing FATENG Electric’s UL-listed products ensures your project meets these critical safety and reliability criteria.

Conclusion and FATENG Electric Advantage

Selecting the right LV switchgear involves understanding UL891 and UL67 standards and matching them to your project’s requirements. FATENG Electric’s UL891 and UL67 switchgear deliver industry-leading performance, reliability, and flexibility, ensuring compliance and efficiency. Trust FATENG Electric for superior electrical solutions, safeguarding your project‘s long-term success and operational excellence.

For more information or to request a consultation, contact FATENG Electric and experience first-hand our commitment to quality and service excellence.

To receive detailed product brochures and specifications for FATENG‘s UL-standard switchgear, please contact: ethan@fatengelectric.com.
