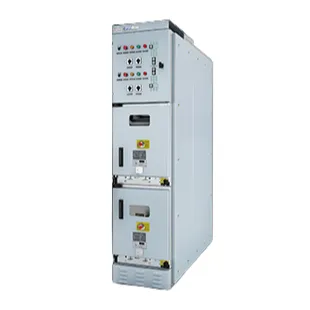

SecoGear iPV Dual Metal‑Clad Switchgear
Overview
- Compact, double-decker (two-high breaker stacking) indoor metal‑clad switchgear with air insulation and integrated vacuum breakers.
- Designed for medium voltage applications (typically 12 kV, extendable to 24 kV) with current ratings up to 2000 A (or higher with forced air cooling).
- Fully compliant with IEEE C37 and ANSI C37 standards, and built to IEC specifications for global markets.
Key Features
-
Dual‑Compartment Structure – Breaker cells are vertically separated to enhance arc‑fault containment and service safety
-
Reliable SecoVac Vacuum Circuit Breaker – Embedded-pole technology for fast interruption, minimal maintenance, and excellent electrical-mechanical performance
-
Comprehensive Interlocking System – Prevents unsafe operations (e.g. shutters cannot open during connect, earthing switch interlocked, etc.)
-
Arc‑Proof Compartments with Pressure‑Relief Flaps – Designed to vent safely in case of internal arcs, minimizing damage and protecting personnel
-
Robust Draw‑Out Mechanism – High‑precision racking, avoiding misalignment and overheating; bolted to enclosure frame for stiffness
-
Environmental Hardened Design – Space heaters, epoxy-insulated busbars, and tested for high humidity, pollution, salt spray, seismic loads (UBC Zone 4), altitude up to 2000 m
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 7.2 – 24 kV (typical 12 kV) |
| Rated Current | 1200 A / 2000 A (up to 4000 A with forced cooling) |
| Short‑Time Withstand | 25 kA / 31.5 kA |
| Dimensions (HxWxD) | ≈ 2400 × 1000 × 1800 mm |
| Weight | ~615 kg (1100 kg for larger models) |
| Standards Compliance | IEEE C37 series, ANSI, IEC 62271‑200; NEMA 1 for enclosure |
For a custom quote on SecoGear iPV Dual Metal‑Clad Switchgear
REQUEST A QUOTETypical Applications
Ideal for indoor installations in:
-
Utility substations, industrial plants, data centers, and commercial buildings
-
Retrofit or OEM applications, where integration of GE breakers into existing lines is needed
-
Projects requiring high safety, modular maintenance, and fast arc‑fault isolation
FAQs
Q: Can the breaker be remotely racked or operated?
A: Yes—optional motorized racking and earthing switch upgrades are available for remote operation from a control center
Q: What happens during an internal arc‑fault?
A: SecoGear features pressure-relief flaps in each primary compartment and arc‑proof segregation to localize fault and vent safely
Q: Do you provide space heaters?
A: Standard heaters are included to prevent condensation—hoteleg remains operational via thermostat/humidistat after commissioning
