Modern industrial and utility facilities rely on medium-voltage (MV) switchgear to manage power safely and efficiently. However, traditional switchgear carries significant electrical risks. Every year, thousands of workers are exposed to arc flash and shock hazards during maintenance and operation of electrical gear. Fateng Electric’s philosophy is to address these challenges with compact, digitalized, and modular solutions. By embedding sensors, data connectivity and remote monitoring into MV switchgear, Fateng Electric’s products help facilities prevent accidents before they happen. This article explains how Medium Voltage Switchgear Digitization – paired with Compact Switchgear Solutions – enhances Digital Switchgear Safety and cuts the chance of costly electrical incidents.
Electrical accidents are extremely serious. Arc flashes – sudden electrical explosions – are rare, but they often cause the worst injuries of any electrical accidents. According to industry surveys, 5–10 arc flash incidents occur every day, and over 2,000 people suffer burn injuries from them each year. Even a single arc flash can incur huge costs: medical bills, equipment damage and legal penalties can easily top $5–15 million per event. The financial toll is staggering, and the human cost (severe burns, blindness, shock trauma) is far higher. Beyond arc flash, simple overloads or short-circuits can shut down production and incur downtime costs of tens of thousands of dollars per minute in large industrial setting.
Because of these stakes, safety is a top priority for plant managers and engineers. Digitizing switchgear – in other words, outfitting gear with embedded sensors, intelligence and communication – is becoming the most effective way to reduce Electrical Risks in MV systems. A digital MV switchgear system continuously monitors its own condition, automatically flags any abnormalities, and even allows technicians to operate breakers from a safe distance. In the sections below, we’ll examine the key ways that digital switchgear technology improves safety, from condition-based monitoring to remote operation to compact design. Throughout, we highlight Fateng Electric’s commitment to safety and innovation in its modular switchgear product strategy.
The Hidden Dangers of Traditional Switchgear
Working inside or near energized switchgear is inherently dangerous. Arc flash occurs when an electrical discharge bridges air gaps or faults in a switchgear compartment, releasing intense heat and pressure. Even small faults can generate temperatures around 20,000°C (hotter than the sun’s surface) and blast pressures that hurl molten metal at high speed. Anyone standing in front of a live breaker or bus bar faces immediate injury or worse. Industry experts note that arc flashes have the highest mortality rate of any electrical accident.

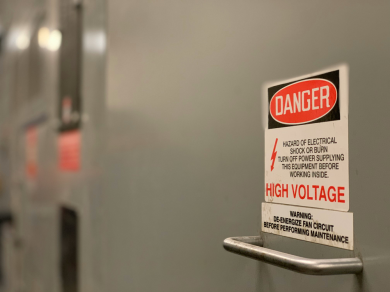

Figure: Medium-voltage switchgear often carries “Danger – High Voltage” warnings. Digitizing this equipment can add layers of protection, reducing the need for personnel to be in close proximity to live parts.
Faults leading to arc flash can happen in any facility – from data centers to factories to utilities. Causes include dust or debris in live areas, moisture, loose connections or unexpected spikes in power. In fact, studies show roughly 1 in 4 arc flashes leads to an injury. The direct injury costs are enormous: surviving arc flash victims may face $1.5 million in medical expenses on average, while legal settlements can reach $5–10 million per incident. Indirect costs – replacing switchgear, production downtime, regulatory fines and lost business – can push the total incident cost to over $15 million (adjusted to today’s dollars).
Beyond arc flash, simpler electrical faults also matter. A momentary overload or insulation breakdown can trip an entire section of the plant offline. In critical operations, any unplanned outage can cost thousands of dollars per minute. Safety incidents often translate to long equipment repair times and reputational damage. Thus, proactive risk reduction is not just prudent but essential. Digitization of switchgear is one of the newest and most powerful ways to achieve it.
What is Switchgear Digitization?
When we talk about Medium Voltage Switchgear Digitization, we mean modernizing switchgear so that its components are “smart.” Instead of simply being a metal enclosure with a manual or fixed breaker, digital switchgear embeds sensors (for current, voltage, temperature, vibration, etc.), microprocessors, and communication modules right at the switchgear and breaker level. These devices continuously measure equipment health and send real-time data to a central controller, the cloud or mobile devices.
In practical terms, digitized switchgear might include: current sensors in each phase, temperature probes on bus bars, speed sensors on breaker mechanisms, and vacuum interrupter wear sensors, all built into the switchgear cubicle. Each sensor keeps tabs on a vital parameter (like coil current or breaker operation time). If any value exceeds safe limits, the system triggers alerts or even automated actions. For example, an over-temperature alert could lead a microprocessor to recommend a maintenance check or to momentarily off-load a circuit before damage occurs.
This data-driven architecture enables a shift from “scheduled” to condition-based maintenance. In the past, operators might only inspect switchgear during routine shutdowns or after a failure. Now, continuous monitoring means technicians know when parts are wearing out or overheating. This reduces unnecessary inspections and, most critically, prevents unnoticed faults from escalating into dangerous failures. As one industry source explains, integrated sensors let you “capture data locally” so you can identify issues early.
From a strategic standpoint, digitization also connects MV switchgear to the broader building or industrial automation systems. New digital breakers and panels can communicate over standard protocols (like IEC 61850) with energy management or SCADA systems. This lets plant managers visualize the entire electrical network’s status on a dashboard, compare current vs. past performance, and apply analytics. In short, smart switchgear turns every breaker cubicle into a node in the Industrial Internet of Things (IIoT). The result is greater situational awareness and control, which enhances safety and uptime.
Key Safety Benefits of Digital Switchgear
Digitizing switchgear directly translates into safer operations in several ways. Below we highlight the main benefits:
l Continuous Condition Monitoring – Sensors inside the switchgear capture real-time status of critical parts (bus bars, coils, contacts, etc.). By trending this data, engineers can spot anomalies that precede failures. For example, if a bus bar is heating slightly more than usual, digital sensors detect the rise and log it. This may indicate a loose connection or overloaded circuit – a precursor to an arc fault. With alerts, staff can intervene before anyone needs to open the gear. According to industry reports, digital gear with built-in sensors dramatically lengthens maintenance intervals (from typical 2–3 years up to 4–5 years) because faults are caught early. This predictive maintenance approach lowers the chance of unexpected failures, and by extension reduces electrical hazards.
l Remote Monitoring and Control – Perhaps the most immediately visible safety gain is that technicians no longer have to stand right next to live switchgear. Modern digital switchgear allows breakers to be operated remotely. Technicians can read measurements, open/close breakers, or rack them in/out using a tablet or a control room console. As one expert notes, connected switchgear enables local and remote monitoring so that workers can stay “outside of the immediate arc flash zone” during checks. This is a crucial advantage: many arc flash injuries occur during switching operations. With digitization, an operator can activate or isolate a circuit from a safe distance, eliminating exposure during the dangerous moments of breaker actuation.
l Continuous Thermal Scanning – Traditional electrical maintenance often relies on periodic infrared surveys to find hot spots. But such surveys are momentary snapshots and require an energized panel and protective gear. Digital switchgear brings thermal monitoring into the equipment itself. Embedded temperature sensors keep watch on bus bars and cable terminations 24/7. One controller can flag even slight temperature anomalies, long before they turn into smoke or arc flashes. This real-time thermal monitoring means the primary causes of arc flash (hot spots, overcurrent) are caught constantly. A manufacturer describes it: digital sensors “continuously measure the cable side of the breaker and main bus bar,” where excessive heat “may indicate increased resistance or poor contact” leading to hazards. By automating this, facilities eliminate human error in safety checks and significantly improve visibility into hidden problems.
l Integrated Alarms and Safety Interlocks – Digitized switchgear can combine sensor data with intelligent logic. For instance, if a current sensor detects arcing or if a temperature spike indicates a fault, the system can initiate a controlled trip or isolate the circuit immediately. Some systems even integrate arc detection and active mitigation (fast trip schemes) that outrun the fastest human reaction. While not all digital gear has arc flash extinguishers, the active sensing and rapid alarm alone can shorten fault clearing time. Even when personnel must enter a switchgear room, warning lights and alarms triggered by the digital system give extra seconds to don protective gear. In effect, the gear “protects itself” as well as its operators.
l Enhanced Situational Awareness – In a digital switchgear setup, all vital data (current, voltage, energy, alarm history, etc.) is logged and often visualized in control software. Operators gain a holistic view of system health, so they can, for example, balance loads or detect imbalances that might otherwise go unnoticed. This broad view reduces human error – one less cause of accidents. It also means safety issues are prioritized: personnel see instantly if a critical breaker is overheating or has been operated too many times. Access to trends and analytics (even on smartphones) helps maintenance crews plan work more safely, rather than rushing blind. As one source summarizes: real-time data and analytics “transform the future of electrical infrastructure” by improving reliability and safety.

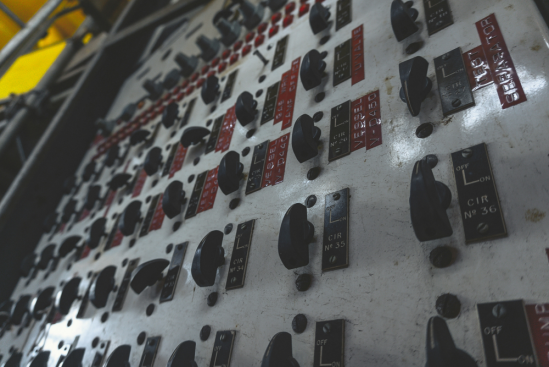

Figure: Modern switchgear panels with digital sensors (labels & warning tags visible) can stream status data to monitors. Fateng Electric’s digital MV products include built-in condition monitoring to preempt faults and accidents.
As these points illustrate, digitalization turns the traditional passive switchgear into an active safety system. Instead of waiting for failures or relying solely on scheduled checks, plant staff are empowered to forecast and prevent issues. From a high-level business perspective, this means fewer unscheduled outages and safer working conditions. Studies of predictive maintenance show that such approaches can eliminate much of the unplanned downtime and equipment failure risks. In other words, it pays off: digital gear helps avoid the multi-million-dollar costs of arc incidents and extends the service life of the equipment, achieving both safety and cost goals.
Compact Modular Designs: Efficiency Meets Safety
Another dimension to Fateng Electric’s approach is compact and modular switchgear design. Size reduction and flexibility may sound like a mechanical rather than an electrical benefit, but it carries safety advantages too. New switchgear architectures are much smaller and more standardized than older relics, often saving 30–40% of floor space. For instance, Schneider’s latest 15kV switchgear was engineered 33% narrower than past models. This matters: many facilities (especially data centers, shipboard systems or retrofits) have cramped electrical rooms where every inch counts. Compact gear fits existing setups without building expensive additions, and it can often be installed more quickly and with less disruption.

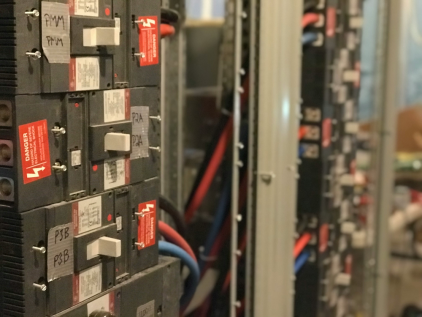

Figure: An example of modular switchgear panel with clear labels and handles. Smaller, modular units (like Fateng Electric’s products) are easier to install in tight spaces, and simplify safe maintenance by providing front-only access and organized layouts.
Safety is enhanced by design in several ways:
l Space and Access – Smaller footprint means electrical rooms are less cluttered, giving technicians safer clearance to work. When you combine compact design with a front-access configuration (no rear cabling), maintenance becomes faster and inherently safer. As one industry expert notes, smaller switchgear “is a real space saver” – in tight areas, that means easier egress and room to maneuver.
l Modularity and Standardization – Modular switchgear is often built on standardized frames. This consistency reduces wiring errors and makes it easier to integrate safety features. If a panel is replaced or expanded, standardized modules ensure that each unit is built with the same high-quality protections. Also, faults are less likely from incompatible parts.
l Environmentally Friendly – Many compact MV switchgears now use vacuum or clean-air interrupters instead of older SF₆ gas breakers. For example, Fateng Electric’s and other modern designs use vacuum circuit breakers that “avoid environmental pollutants”. Eliminating greenhouse gases and oil-insulated breakers reduces fire risk and leakage hazards. Vacuum interrupters also arc-extinguish faster, which indirectly improves electrical safety.
l Ease of Retrofit and Upgrade – Upgrading an old plant with digital MV gear is simpler when the new units are compact. Fateng Electric’s modular panels can often replace legacy gear in existing cable layouts, with less handling of heavy parts. This means safety upgrades (adding sensors, for example) can be done with minimal downtime and lower installation risk.
In short, Compact Switchgear Solutions align with safety goals. By saving space, improving airflow and simplifying maintenance, they lower the chance of accidents caused by cramped conditions or panel overcrowding. For business leaders, the ROI is clear: smaller gear cuts construction costs (less building volume and cabling) and reduces equipment materials (fewer bus bars, smaller breakers), all while adding digital intelligence.
Real-World Impact and Examples
Many recent case studies and product launches confirm the safety impact of switchgear digitization. For instance, Schneider Electric’s new SureSeT medium-voltage switchgear with EvoPacT breakers is designed specifically for remote operation and monitoring. In one report, Schneider points out that technicians can “remain at an appropriate working distance (outside of the arc flash zone) by using native wireless communications to operate equipment and gather data”. In practice, this means all routine tasks – reading meters, toggling breakers, even emergency shutdowns – no longer require a worker to don full arc-flash PPE and stand next to live gear. Instead, a tablet display suffices.
Another example comes from utilities upgrading old substations. By replacing air-insulated switchgear with new compact digital units, one utility reported eliminating a major source of arc-flash hazard. The new panels had built-in thermal sensors that alerted operators to hot bus clamps well before fault conditions arose. Maintenance crews also reduced their inspection time by 50%, since the system automatically checks itself hourly. These kinds of numbers add up: avoided downtime plus fewer injury claims and insurance costs.
Data centers also benefit from digital MV switchgear. A data center operator noted that shrinking the footprint of switchgear by 30% allowed room for extra cooling units – a bonus safety feature given how heat stress can degrade insulation. With digitized breakers, the center’s engineers now get real-time alerts for any phase imbalances or moisture ingress, issues that used to manifest only as equipment failures. One industry study highlights that adding modern monitoring to distribution gear can increase the lifespan of a system while also improving safety through early fault detection.
While specific Fateng Electric case studies are proprietary, the company has publicly emphasized these same themes. Fateng’s latest MV switchgear line includes vacuum breakers with integrated sensors and modular bays that can be retrofitted. Company literature notes that its digital switchgear safety features – such as wireless operation and front-only access – directly address the challenges of arc flash in industrial environments. In effect, Fateng’s solutions embody its motto of “Compact, Digital, Modular” by delivering exactly the combination of smaller footprint and smarter controls needed for 21st-century safety.
Best Practices for Digital Switchgear Safety
For decision-makers considering a digital MV switchgear upgrade, here are some best practices:
1. Implement Condition-Based Maintenance: Transition from fixed schedules to sensor-driven schedules. Use historical data from the switchgear’s sensors to refine maintenance intervals. If an alert pops up for a particular breaker phase, address it immediately to avoid risk.
2. Train Staff on Digital Tools: Even as equipment gets smarter, personnel must learn new procedures. Teach technicians how to use the remote monitoring apps and how to interpret sensor alerts. A well-trained team will react faster to warnings and won’t overlook software alarms.
3. Integrate with Safety Standards: Align the digital features with NFPA 70E or IEC safety standards. For instance, update your arc flash hazard analysis using the real-time data from the switchgear; you may find you can downgrade PPE levels if continuous monitoring is in place.
4. Plan Redundancy and Security: Digital connectivity brings cybersecurity concerns. Ensure that only authorized staff can remotely operate breakers (use strong authentication, firewalls, etc.). Also verify that backup communication links exist so that a network outage doesn’t prevent safety commands from reaching the gear.
5. Leverage Analytics: Use the collected data to perform periodic safety audits. For example, run heat-map analyses of where the most alerts occur across your facility. Address trends proactively (e.g. “Arc risk appears higher in Section 3 – investigate underlying causes”).
By following these steps, a facility not only reduces the immediate electrical hazards, but also establishes a culture of ongoing safety improvement using digital tools. As one electrical safety expert notes, proper risk assessment “goes hand-in-glove with having the right PPE,” but in the digital era, it also goes hand-in-glove with having the right data.
Conclusion
Medium-voltage switchgear digitization is more than a buzzword – it is a proven strategy to make electrical systems safer, more reliable, and more efficient. By equipping switchgear with sensors, connectivity, and smart logic, companies can dramatically lower the frequency of arc flash events and shock accidents. These innovations translate into fewer injuries and millions of dollars saved from avoided outages and liability costs. At the same time, compact modular designs save space and simplify maintenance, further reducing the risk of human error or equipment misconfiguration.
Fateng Electric’s mission is to deliver exactly this kind of modern, safety-first solution. All of Fateng’s MV switchgear products embody a compact, digital, modular philosophy: they are built to be smaller and greener than legacy gear, to include built-in diagnostics, and to allow remote operation whenever possible. For business leaders who prioritize both safety and innovation, digitized switchgear represents a smart investment. Not only does it protect people – it also protects the bottom line.
In the end, the choice is clear: upgrading to compact, digital switchgear solutions is one of the most effective ways to mitigate electrical risks today. By adopting digital connectivity and advanced safety features, facilities can keep workers out of harm’s way while maintaining uninterrupted power. This approach aligns perfectly with Fateng Electric’s goal to lead the industry toward a safer, more efficient electrical future.
Sources: Industry research and manufacturer data (e.g. Schneider Electric, NFPA, and ABB) on arc flash statistics and modern switchgear safety measures.
